Detailed Introduction to Bya/Bym 1.5-16mm² PVC Insulated Copper Wire (EU Standard)
I. From the Perspective of the Product Itself
(1) Specification Parameters
The specification parameters of Bya/Bym 1.5-16mm² PVC
Insulated Copper Wire are carefully designed, strictly following EU electrical standards, and can meet the
Electrical Wiring needs in different scenarios.
This series of cables includes various specifications such as 1.5mm², 2.5mm², 4mm², 6mm², 10mm², and 16mm². The solid conductor diameter of the 1.5mm² hard wire is approximately 1.38mm, and the
Flexible Wire is stranded by multiple copper wires with a diameter of about 0.15mm, with an overall cross-section of 1.5mm². At 20°C, the DC resistance of the 1.5mm² hard wire conductor does not exceed 12.1Ω/km, and that of the flexible wire does not exceed 13.3Ω/km. The safe current-carrying capacity is about 14A in air and 18A in soil.
The solid conductor diameter of the 2.5mm² hard wire is about 1.78mm, and the flexible wire is also stranded by multiple fine copper wires. At 20°C, the DC resistance of the hard wire conductor does not exceed 7.41Ω/km, and that of the flexible wire does not exceed 8.21Ω/km. The safe current-carrying capacity is about 21A in air and 26A in soil.
The solid conductor diameter of the 4mm² hard wire is approximately 2.25mm. At 20°C, the DC resistance of the hard wire conductor does not exceed 4.61Ω/km, and that of the flexible wire does not exceed 5.01Ω/km. The safe current-carrying capacity is about 28A in air and 35A in soil.
The solid conductor diameter of the 6mm² hard wire is about 2.76mm. At 20°C, the DC resistance of the hard wire conductor does not exceed 3.08Ω/km, and that of the flexible wire does not exceed 3.30Ω/km. The safe current-carrying capacity is about 37A in air and 47A in soil.
The solid conductor diameter of the 10mm² hard wire is approximately 4.00mm. At 20°C, the DC resistance of the hard wire conductor does not exceed 1.83Ω/km, and that of the flexible wire does not exceed 1.95Ω/km. The safe current-carrying capacity is about 53A in air and 67A in soil.
The solid conductor diameter of the 16mm² hard wire is about 5.00mm. At 20°C, the DC resistance of the hard wire conductor does not exceed 1.15Ω/km, and that of the flexible wire does not exceed 1.21Ω/km. The safe current-carrying capacity is about 70A in air and 88A in soil.
The rated voltage of this series of cables is 450/750V, which perfectly matches the voltage standard of the EU low-voltage power grid. The thickness of the
PVC Insulation layer varies with specifications. The insulation layer thickness of 1.5mm² and 2.5mm² is not less than 0.8mm, and that of 4mm² and above is not less than 1.0mm, ensuring good insulation performance.
In terms of temperature adaptation range, the cable can work normally in an environment of -30°C to 70°C, and can cope with different climatic conditions in EU regions. At the same time, the static bending radius of the hard wire is not less than 4 times the outer diameter of the cable, and the dynamic bending radius is not less than 8 times; the static bending radius of the flexible wire is not less than 6 times the outer diameter of the cable, and the dynamic bending radius is not less than 10 times, facilitating wiring operations in different installation scenarios.
(2) Characteristic Applications
Bya/Bym 1.5-16mm² PVC insulated copper wire, with its various specifications and different wire types, has distinctive applications in various electrical wiring scenarios in EU regions.
The 1.5mm² hard wire is often used in household lighting circuits. In family residences in EU regions, there are many lamps and they are widely distributed. The 1.5mm² hard wire can meet the power transmission needs of the lighting system. Its solid single-core structure has high mechanical strength, suitable for laying through pipes inside walls, such as lighting lines in living rooms, bedrooms, kitchens and other areas. The flexible wire is suitable for power connection of movable lighting equipment such as table lamps and floor lamps. Due to its multi-strand stranded structure, it has strong
Flexibility, facilitating the movement and placement of equipment.
The 2.5mm² hard wire is widely used in household small socket circuits. Such as TV sockets in the living room and mobile phone charging sockets in the bedroom, the connected electrical appliances have relatively small power. The 2.5mm² hard wire can stably supply power to these sockets and is suitable for fixed wiring in pipes in walls or under the ground. The flexible wire can be used for power cords of small household appliances such as vacuum cleaners and electric fans, facilitating the movement and use of these equipment.
The 4mm² hard wire is suitable for circuits connecting high-power household appliances such as air conditioners and electric water heaters. Such household appliances have large power and high requirements for current carrying capacity. The 4mm² hard wire can meet their power transmission needs, and is usually fixedly laid in walls or floors to ensure electrical safety. The flexible wire can be used for small commercial equipment, such as coffee machines and small ovens in coffee shops, facilitating the installation and position adjustment of the equipment.
The 6mm² hard wire is often used in small power equipment circuits in commercial buildings, such as small water pumps and ventilation equipment. These equipment need stable power supply. The current-carrying capacity of the 6mm² hard wire can meet their needs, and it is suitable for fixed wiring in bridges or pipes. The flexible wire can be used for some medium-sized equipment that needs to be moved frequently, such as display cabinet lighting and small power devices in shopping malls.
The 10mm² hard wire is mostly used for power main lines in commercial buildings, such as the main power incoming line of the entire floor of an office and the distribution main line of a small shopping mall. It can carry large currents and transmit power from the distribution room to various areas, usually using bridge laying or buried laying. The flexible wire can be used for some medium-sized mobile equipment in the industrial field, such as power connection of small cranes and transport vehicles in workshops.
The 16mm² hard wire is suitable for distribution branches of industrial equipment, such as small and medium-sized machine tools and some equipment on production lines. These equipment have large power, and the 16mm² hard wire can ensure stable power transmission, generally fixedly laid in pipes or bridges in industrial plants. The flexible wire can be used for temporary power supply lines of large mobile equipment, such as small electric tools on construction sites.
(3) Material and Style
In terms of material selection and style design, Bya/Bym 1.5-16mm² PVC insulated copper wire fully meets EU standards and the needs of different usage scenarios.
The conductor is made of high-purity electrolytic copper with a purity of more than 99.95%. High-purity electrolytic copper has excellent conductivity, which can effectively reduce energy loss during current transmission, improve power transmission efficiency, and meet the EU requirements for energy conservation. At the same time, electrolytic copper has good ductility and toughness, so that the hard wire is not easy to break during bending and installation, and the multi-strand copper wire stranded structure of the flexible wire can also maintain good flexibility and mechanical properties.
The insulation layer is made of high-quality polyvinyl chloride (PVC) material, which has good insulation performance, can effectively insulate current, prevent electric leakage accidents, and meet the strict EU standards for electrical safety. The PVC insulation layer also has good temperature resistance, and can maintain stable performance in the temperature range of -30°C to 70°C, adapting to different climatic conditions in EU regions. In addition, it can resist moisture, dust and general chemical corrosion, prolonging the service life of the cable.

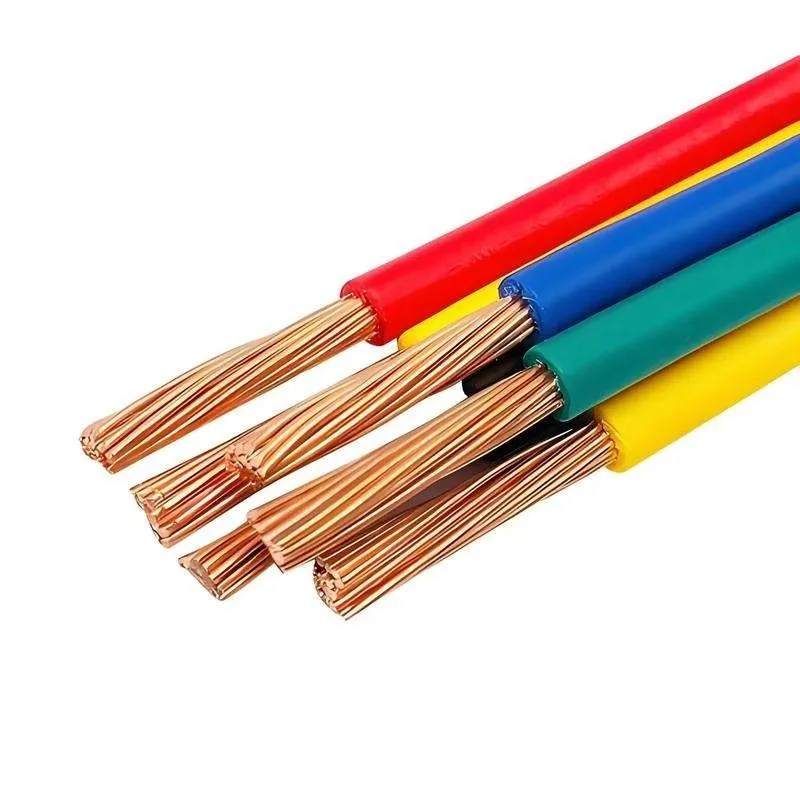

In terms of style, there are two types: hard wire and flexible wire. The hard wire has a solid single-core structure, which makes it have high mechanical strength, not easy to be stretched or broken, and suitable for use in fixed wiring scenarios, such as wall pipe threading and bridge laying. Its wire body is straight, easy to cut and install, and can ensure neat and standardized wiring.
The flexible wire has a multi-strand stranded structure, composed of multiple fine copper wires stranded together. This structure makes the flexible wire have strong flexibility, easy to bend and fold, and suitable for use in scenarios that require frequent movement or bending, such as power cords of household appliances and connecting wires of portable equipment. The flexible wire is not easy to be damaged during bending and can adapt to various complex installation environments.
The colors of the cables are also clearly distinguished. According to EU standards, the live wire is usually brown, black or gray, the neutral wire is blue, and the
Ground Wire is yellow-green 双色. The design of different colors is convenient for installers to quickly identify wires for different purposes during wiring, reducing wiring errors and improving installation efficiency and safety.
(4) Production Process
The production process of Bya/Bym 1.5-16mm² PVC insulated copper wire strictly follows EU standards, and every link from raw material processing to finished product inspection is 精益求精.
In the conductor manufacturing link, for hard wires, high-purity electrolytic copper is melted and made into copper rods through a continuous casting process, and then the copper rods are drawn into solid single-
Core Copper wires of the required diameter through multiple wire drawing processes. During the wire drawing process, the size of the wire drawing die and the wire drawing speed are precisely controlled to ensure that the diameter of the copper wire is uniform, the surface is smooth and free of burrs, so as to ensure good conductivity.
For flexible wires, copper rods are also made first, then the copper rods are drawn into multiple fine copper wires, and then these fine copper wires are stranded together according to a specific stranding method and pitch to form a multi-strand
Stranded Conductor. During the stranding process, the tension is strictly controlled to ensure that each strand of copper wire is evenly stressed and tightly stranded, so as to ensure the overall performance and flexibility of the conductor.
The extrusion of the insulation layer is one of the key processes. A special extruder is used to heat the PVC material to a molten state, and then evenly coat it on the surface of the conductor to form an insulation layer. During the extrusion process, the extrusion temperature, pressure and speed are strictly controlled to ensure that the thickness of the insulation layer is uniform, closely combined with the conductor, and free of bubbles, pinholes and other defects. The thickness of the insulation layer is accurately adjusted according to different specifications of cables to meet the requirements of EU standards for insulation performance. After extrusion, the insulation layer is quickly cooled and shaped through a cooling water tank to ensure its dimensional stability and structural integrity.
During the production process, the cable also needs to undergo a number of performance tests. In terms of conductors, parameters such as DC resistance and diameter deviation are tested to ensure that the conductivity meets the standards. In terms of the insulation layer, insulation resistance test, voltage resistance test, temperature resistance test, mechanical performance test, etc. are carried out to verify its insulation effect, stability and durability. In addition, the appearance of the cable is strictly inspected to ensure that the surface is smooth, the color is uniform, and there are no defects such as damage.
The finished cables also need to undergo various tests related to CE certification, including electrical safety, mechanical performance, aging resistance, environmental protection, etc. Only products that meet all requirements can leave the factory for sale, ensuring safe and reliable products for electrical wiring in EU regions.
II. From the Perspective of General Product Information
(1) Packaging
The packaging design of Bya/Bym 1.5-16mm² PVC insulated copper wire fully considers the transportation, storage and sales needs of the product, and complies with relevant EU standards.
For hard wires and flexible wires, corresponding packaging methods are adopted according to different specifications and lengths. Small 规格 (1.5mm², 2.5mm²) cables with lengths of 100 meters and 200 meters are usually wound on plastic reels. The plastic reels are made of high-strength, environmentally friendly polyethylene material, which has good pressure resistance and impact resistance, and can protect the cables from damage during transportation and storage. Both sides of the reel are provided with baffles to prevent the cable from falling off. The baffles are printed with clear product information, including product name, specification, length, rated voltage, CE certification mark, manufacturer, production date, etc., which is convenient for users to identify and understand the product.
Large 规格 (4mm² and above) cables with lengths of 50 meters and 100 meters are mostly packaged with wooden reels. The wooden reels are made of high-quality hardwood, 经过干燥处理，and have high strength and stability, which can bear the weight of the cable and the pressure during transportation. Both ends of the reel are equipped with metal flanges to enhance the structural strength of the reel and prevent deformation. The reel is also marked with detailed product information and is equipped with metal lifting rings, which is convenient for loading and unloading with forklifts and other equipment.
Both plastic reel and wooden reel packaged cables are wrapped with a layer of moisture-proof plastic film to prevent the cables from getting damp during transportation and storage, which is especially suitable for the humid climate environment in EU regions. For products exported to different EU countries, the packaging is also printed with language marks and instructions of the corresponding countries, which is convenient for local users to understand.
For small batches of retail products, such as 10-meter and 20-meter short wires, they are packaged in sealed plastic bags. The packaging bag is printed with the main information of the product and usage precautions, which is convenient for users to buy and carry. All packaging materials meet EU environmental protection requirements and are recyclable, reducing environmental pollution.
(2) Transportation
The transportation process of Bya/Bym 1.5-16mm² PVC insulated copper wire strictly follows EU transportation regulations and standards to ensure that the products are delivered to the destination safely and timely.
In terms of transportation mode selection, a variety of transportation modes are adopted according to the transportation distance and order quantity. For short-distance transportation within the EU, freight trucks are usually used. This mode has high flexibility and can quickly deliver products to customers, which is suitable for transportation of small batches and urgent orders. For long-distance transportation, railway freight or road express transportation is mostly used. Railway freight has large transportation volume, good stability and relatively low cost; road express transportation can provide door-to-door service, which is convenient for customers to receive goods.
For cross-country transportation, container shipping or air transportation is mostly used. Container shipping is suitable for transportation of large quantities of products, with the characteristics of low transportation cost and high safety, which can protect the cables from the impact of the external environment. Air transportation is suitable for small batches and urgent orders, which can quickly deliver products to customers.
Before loading, carefully check the packaged cables to ensure that the packaging is intact and the reels are not damaged or deformed. For cables packaged with wooden reels, use forklifts and other equipment for loading and unloading to avoid damage caused by manual handling. In the carriage of the transport vehicle, reasonably arrange the placement of cables to avoid mutual extrusion and collision. For heavier reels, place them at the bottom of the carriage and separate them with wooden pads to prevent sliding.
During transportation, strictly control the transportation environment. Avoid cables being exposed to direct sunlight to prevent the PVC insulation layer from aging due to high temperature; when transporting in rainy days, ensure that the carriage of the transport vehicle is well sealed, or cover the cables to prevent them from getting damp. At the same time, during transportation, try to avoid sudden braking, sharp turns and other operations to reduce friction and collision between products.
During transportation, special personnel are arranged to track and monitor the goods, and real-time information on the location and transportation status of the goods is obtained through the logistics information system. In case of special circumstances, such as road blockages and bad weather, communicate with customers in a timely manner, adjust the transportation plan, and ensure that the products can be delivered as soon as possible.
(3) Delivery
The delivery process of Bya/Bym 1.5-16mm² PVC insulated copper wire is standardized and orderly to ensure that customers can receive products that meet the requirements in a timely manner.
After customers place orders through online platforms, emails, phone calls, etc., customer service personnel will confirm the order within 1-2 working days, verify the specifications, quantity, length, receiving address, contact information, delivery time and other information of the products required by customers to ensure that the order information is accurate. For customers in EU regions, customer service personnel will communicate in local languages or English to ensure accurate information transmission.
After the order is confirmed, the warehouse manager will retrieve the corresponding products from the warehouse in a timely manner according to the order information. In the retrieval process, strictly follow the first-in-first-out principle, giving priority to distributing products with earlier production dates to ensure that the products are used within the shelf life. At the same time, re-inspect the retrieved products, check whether the specifications, quantity and packaging of the products are consistent with the order, and check whether the packaging is intact to ensure that the delivered products are of qualified quality.
Before the products are shipped out of the warehouse, the warehouse manager will carry out necessary packaging reinforcement for the products, especially for products that need to be transported over long distances, and will add buffer materials such as foam pads and bubble films to enhance the protection ability of the packaging. At the same time, a detailed delivery note is generated, which indicates the order number, customer information, product information (specifications, quantity, length), delivery date, transportation method, estimated arrival time, etc., and the delivery note is
sent along with the goods.
Once the warehouse transfers the goods to the logistics department, the logistics team arranges appropriate transport vehicles and routes based on the delivery address and transportation method, and enters the shipment details into the logistics management system to generate a tracking number. This tracking number is promptly provided to the customer, allowing them to monitor the shipment’s progress via the logistics provider’s online platform or mobile application. For cross-border shipments within the EU, the logistics department also handles customs clearance procedures, ensuring compliance with all import/export regulations and minimizing delays at border checkpoints.
Throughout the delivery process, a robust communication system is maintained. If issues such as stock shortages or unexpected delays arise, the customer is notified immediately, and alternative solutions—such as substituting specifications or adjusting delivery timelines—are proposed to align with their needs. All delivery-related records, including order confirmations, shipment receipts, and tracking data, are securely archived for future reference and traceability.
(4) Samples
To facilitate informed purchasing decisions, the company offers sample services for Bya/Bym 1.5-16mm² PVC insulated copper wires, allowing EU customers to evaluate product quality firsthand before placing bulk orders.
Customers can request samples via the official website, email, or phone, specifying the desired specifications (e.g., 1.5mm² hard wire, 10mm² flexible wire), quantity, and detailed delivery address. A dedicated customer service representative responds within 1–3 business days to confirm the request, clarify any details, and inform the customer of sample-related policies—including whether samples are complimentary (typically for serious buyers) or subject to a nominal fee, along with shipping costs and estimated delivery timelines.
Samples are identical to bulk products in terms of materials, specifications, and performance, ensuring accurate representation. Each sample is 1–2 meters in length, sufficient for testing key attributes such as conductor purity, insulation thickness, flexibility (for
Stranded Wires), and color coding compliance.
Samples are packaged in sealed plastic bags or small cartons, labeled with product details (specification, type, CE mark) and accompanied by technical datasheets and quality certificates. This documentation includes test results for parameters like conductivity, insulation resistance, and temperature tolerance, enabling customers to verify compliance with EU standards.
Shipments are handled via reputable EU courier services (e.g., DHL, UPS) to ensure fast, secure delivery. Customers receive a tracking number upon dispatch, allowing them to monitor the sample’s journey in real time. Post-delivery, technical support is available to address any questions or conduct virtual demonstrations of product features, ensuring customers fully understand the wire’s capabilities.
(5) After-Sales Service
The company provides comprehensive after-sales support to safeguard customer satisfaction and ensure the reliable performance of Bya/Bym 1.5-16mm² PVC insulated copper wires.
Warranty Coverage: All wires come with a 10-year warranty against manufacturing defects under normal operating conditions. If a product fails due to material or 工艺 flaws within this period, the company offers free replacements or repairs, including shipping costs for EU customers.
Technical Assistance: A dedicated hotline and email support team are available 24/7 to assist with installation queries, troubleshooting, and compliance guidance. For complex issues, on-site technical visits can be arranged within 48 hours for customers in major EU cities, ensuring prompt resolution of problems like wiring errors or performance discrepancies.
Returns and Exchanges: If products are damaged during transit or fail to meet ordered specifications, customers can initiate returns within 30 days of delivery. The company coordinates with logistics partners to arrange pickups and processes refunds or exchanges within 5 business days of receiving returned items.
Recall and Safety Updates: In the unlikely event of a safety-related issue, the company activates a rapid recall system, using customer records to notify affected parties and arrange replacements. Regular safety updates and best practice guidelines are also shared via email newsletters, helping customers maintain compliant and efficient electrical systems.
Feedback Mechanisms: Customer feedback is actively solicited through post-purchase surveys and follow-up calls. This input is used to refine product design, improve service quality, and develop new features aligned with evolving EU electrical standards and market needs.
By integrating rigorous quality control with responsive support, the company ensures that Bya/Bym wires not only meet but exceed EU customer expectations, solidifying their role as a trusted partner in electrical infrastructure projects.
